Plot 3d Vector Matlab

You can also use a specified line style marker and color for drawing 3d plots.

Plot 3d vector matlab. For drawing vectors in 3d youll probably want to use quiver3. Quiver3 xyzuvw plots vectors with directions determined by components uvw at points determined by xyz. Learn more about 3d arrow vectarrow. If you want to go 3d then youre accessing the group the point and the coordinate ijk.

Plotting a 3d arrow using vectarrow. In matlab the plot3 function is used to draw the 3d plot graph. Plot the surface using the surf command. From the z components in the matrix zz the surf command will create a 3 d shaded surface.

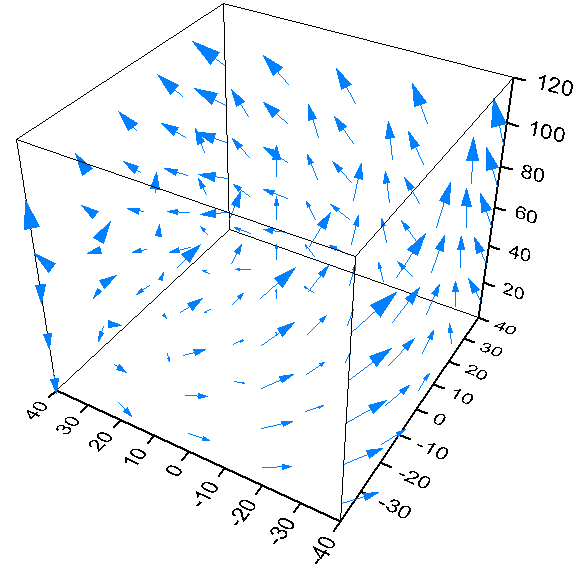

Description a three dimensional quiver plot displays vectors with components uvw at the points xyz where u v w x y and z all have real non complex values. 3d surface plot with three vector. This is the point in which you will relate xx yy and zz together. See the documentation for examples of how to use it.

Description to plot a set of coordinates connected by line segments specify x y and z as vectors of the same length. For drawing straight lines and arcs use line. In general id avoid a 3d matrix. What youre really doing with a 2d matrix is accessing the point and the coordinate 2 indices ipointjcoordinate.

The x y and z inputs represent where you want the base of the vector to be drawn and the u v and w inputs represent the three components of the vector. Learn more about vector plot. The actual command line will be in the format of surf xxyyzz. To plot multiple sets of coordinates on the same set of axes specify at least one of x y or z as a matrix and the.

The general syntax to display the 3d plot is plot3 xyz plot3 xyzname plot3 xyzlinespec lets start drawing different types of the 3d plot graph. You can have as many dimensions in the coordinates as you want.
